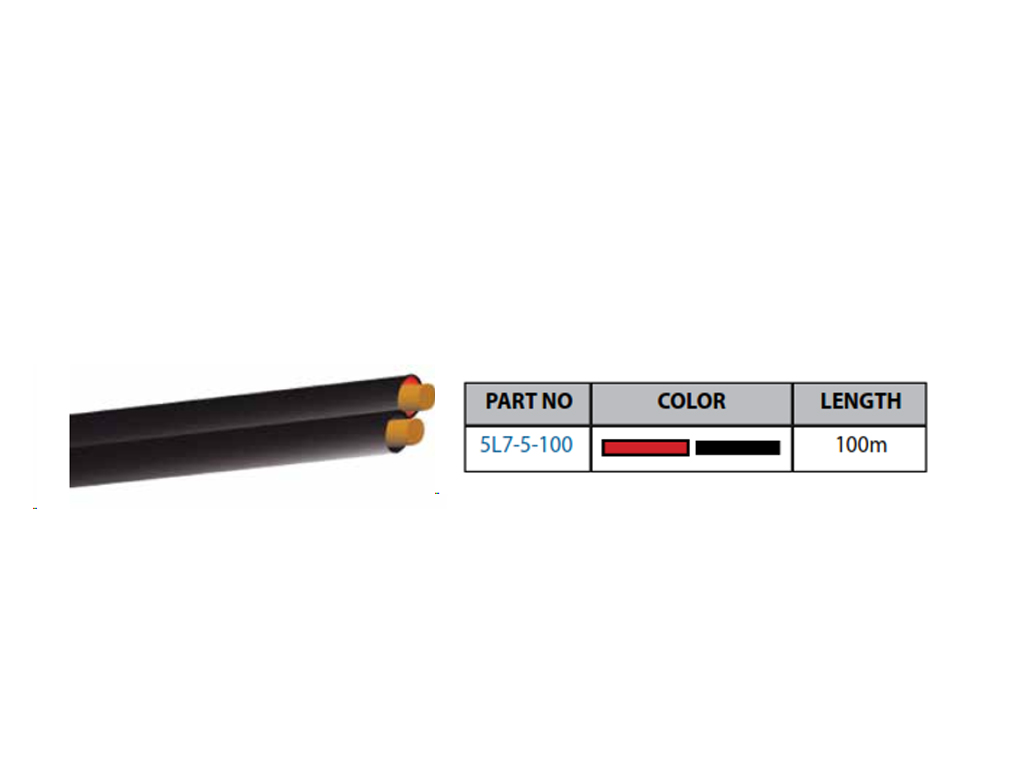

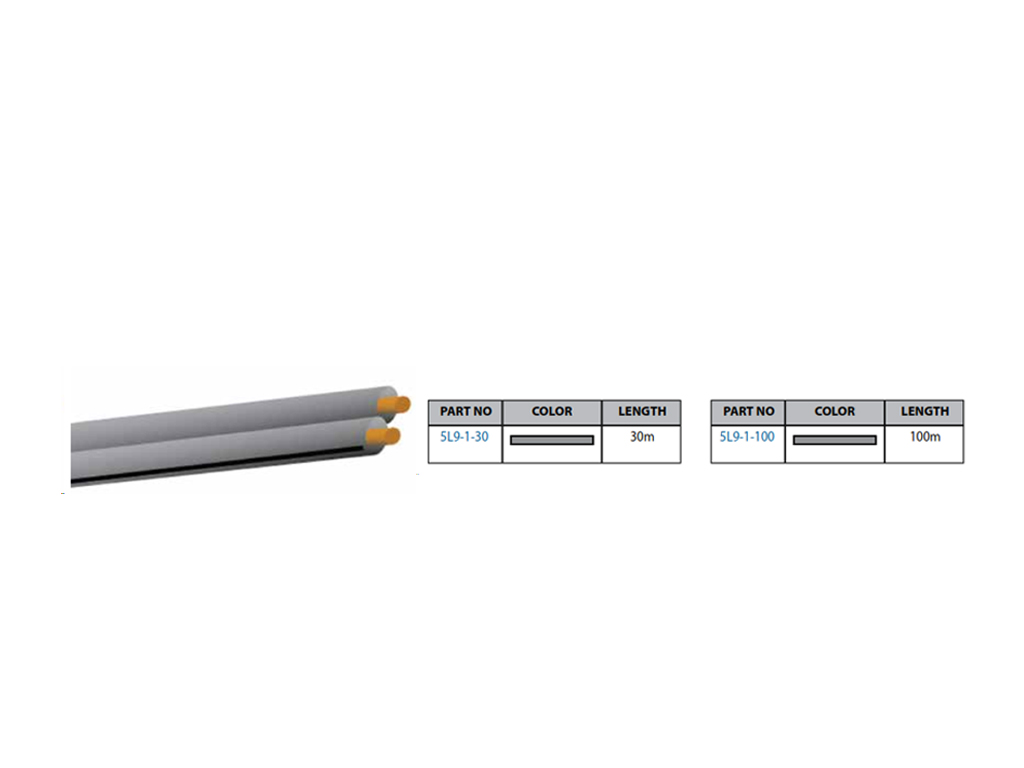

Speaker Cable
SPEAKER CABLE (Roll of 30 & 100 meter) • Rating : 50 Amp • Strand Dia : 0.32mm • Number of Strands : 65 • Conductor Cross Section : 5.22mm²

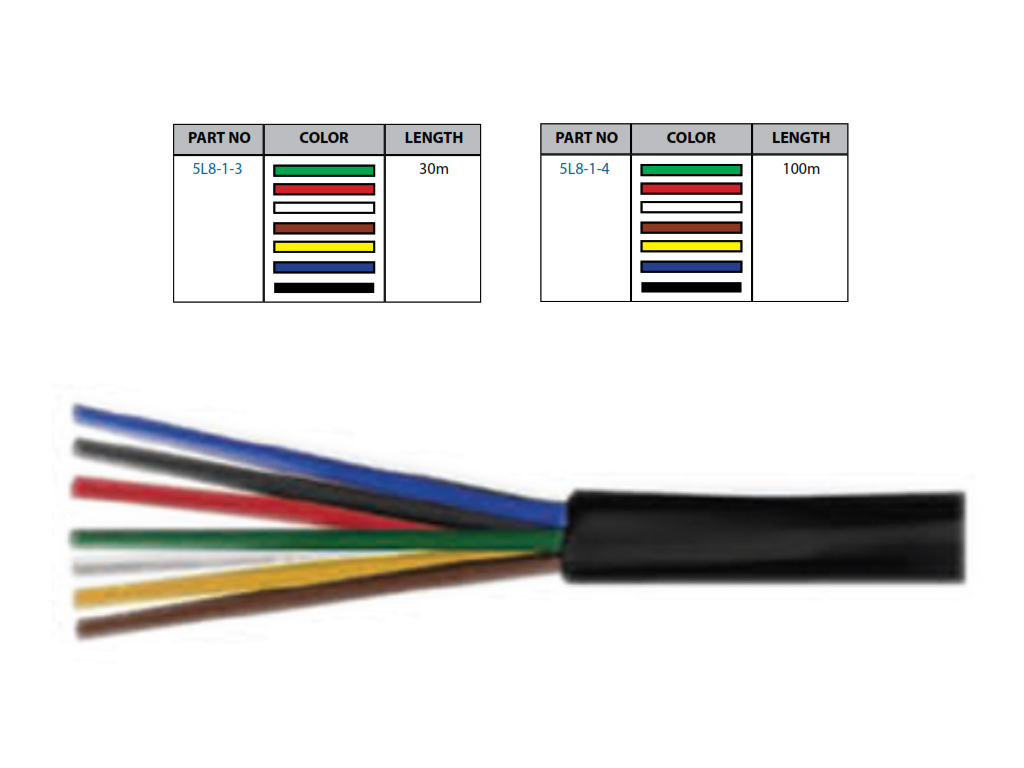

Multicore Trailer Cable 7 Core
2mm, 2.5mm, 3mm, 4mm (Roll of 30 & 100 meter) MM NO. OF CORES STRAND NO/SIZE NOMINAL AREA (mm2) **AMP RATING @30°C INSULATION THICKNESS (mm) SHEATS THICKNESS (mm) ELECTRICAL RESISTANCE @20°C (ohm/km) NOMINAL O.D. (mm) 2.5 7 8/0.32 0.64 6 0.4 0.6 29.9 7.3 3 7 14/0.32 1.13 10 0.4 0.6 16.8 7.7 4 7 […]

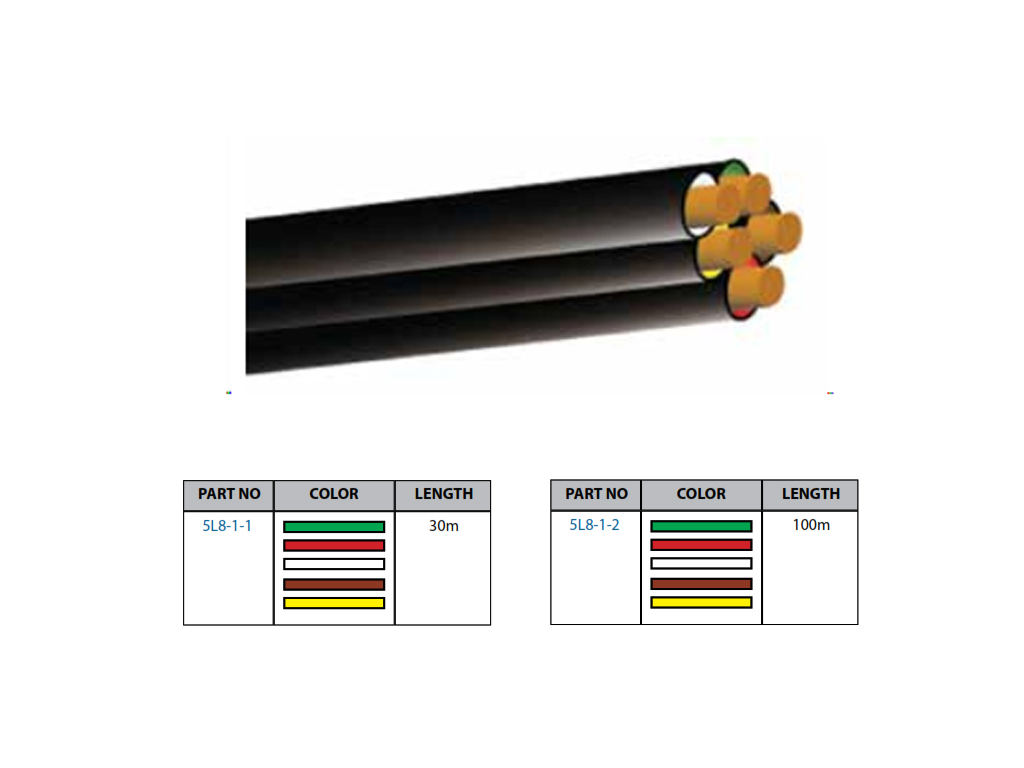

MULTICORE TRAILER CABLE 5 CORE
MULTICORE TRAILER CABLE 5 CORE 2,5mm, 3mm, 4mm MM NO. OF CORES STRAND NO/SIZE NOMINAL AREA (mm2) **AMP RATING @30°C INSULATION THICKNESS (mm) SHEATS THICKNESS (mm) ELECTRICAL RESISTANCE @20°C (ohm/km) NOMINAL O.D. (mm) 2.5 5 8/0.32 0.64 8 0.4 0.6 29.9 6.7 3 5 14/0.32 1.13 11 0.4 0.6 16.8 7.1 4 5 23/0.32 […]
Three Core Cable 3mm
THREE CORE CABLE 3 mm (BLACK SHEATED) • Rating : 10 Amp • Strand Dia : 0.32mm • Number of Strands : 14 • Conductor Cross Section : 1.13mm²

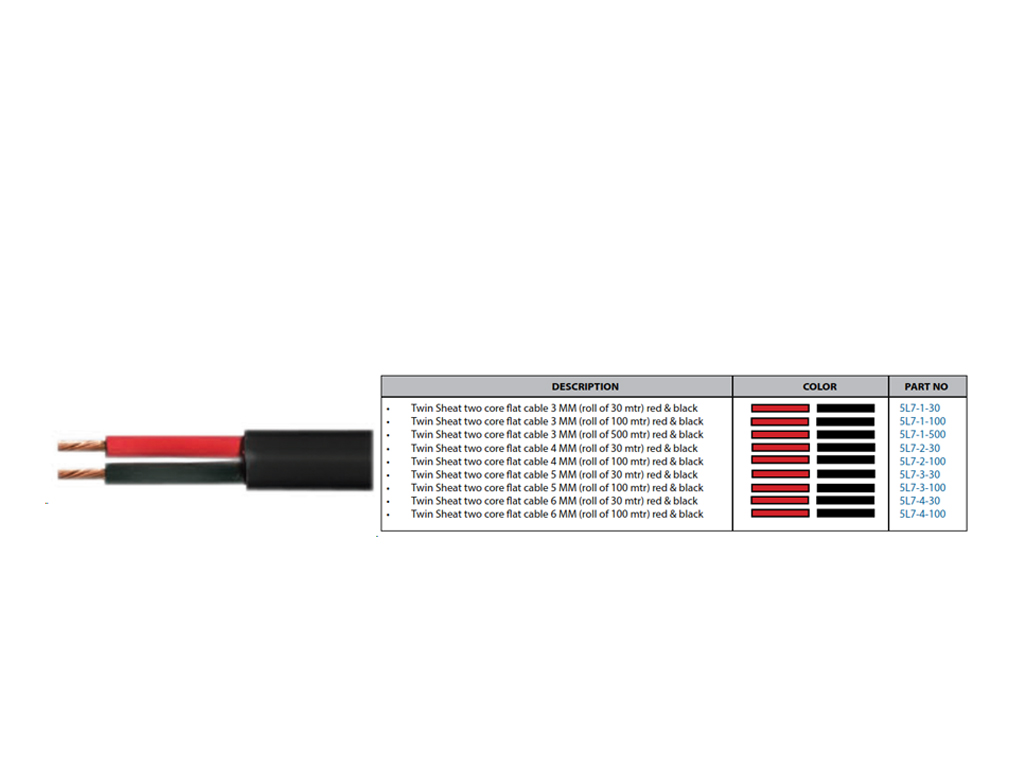

Twin Sheat Two Core Flat Cable 3mm
TWIN SHEAT TWO CORE FLAT CABLE 3mm (Roll of 30, 100, 500 meter) Sheath Colour : Red or Black MM NO. OF CORES STRAND NO/SIZE NOMINAL AREA (mm2) **AMP RATING @30°C INSULATION THICKNESS (mm) SHEATS THICKNESS (mm) ELECTRICAL RESISTANCE @20°C (ohm/km) NOMINAL O.D. (mm) 3 2 14/0.32 1.13 16 0.4 0.6 16.5 3.3 X […]
Twin Core Cable 2mm
TWIN CORE CABLE 2mm (BLACK SHEATED) • Rating : 10 Amp • Strand Dia : 0.32mm • Number of Strands : 14 • Conductor Cross Section : 1.13mm^2

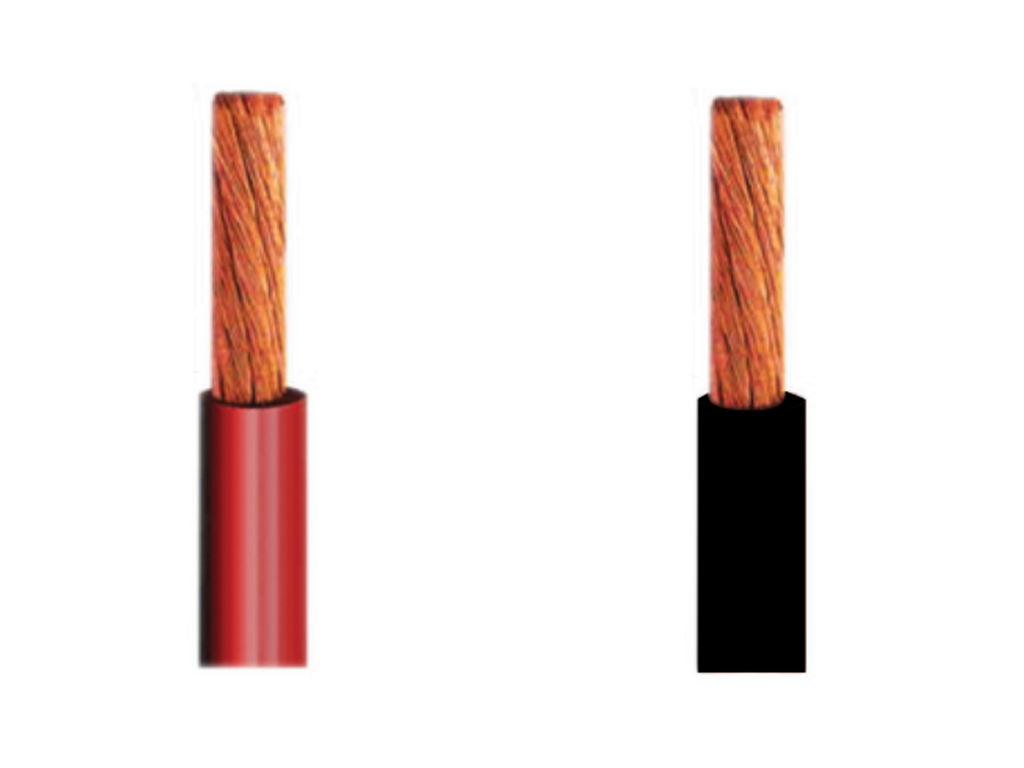

Battery & Starter Cable Sheath Colour
CABLE BATTERY RED CABLE BATTERY BLACK
Battery & Starter Cable Copper Conductor, PVC Insulated
Specification : SPLN 42-3 : 1992 SNI 04-3236 : 1992 IEC 60227-3 IEC. 02 Copper Conductor PVC Insulated

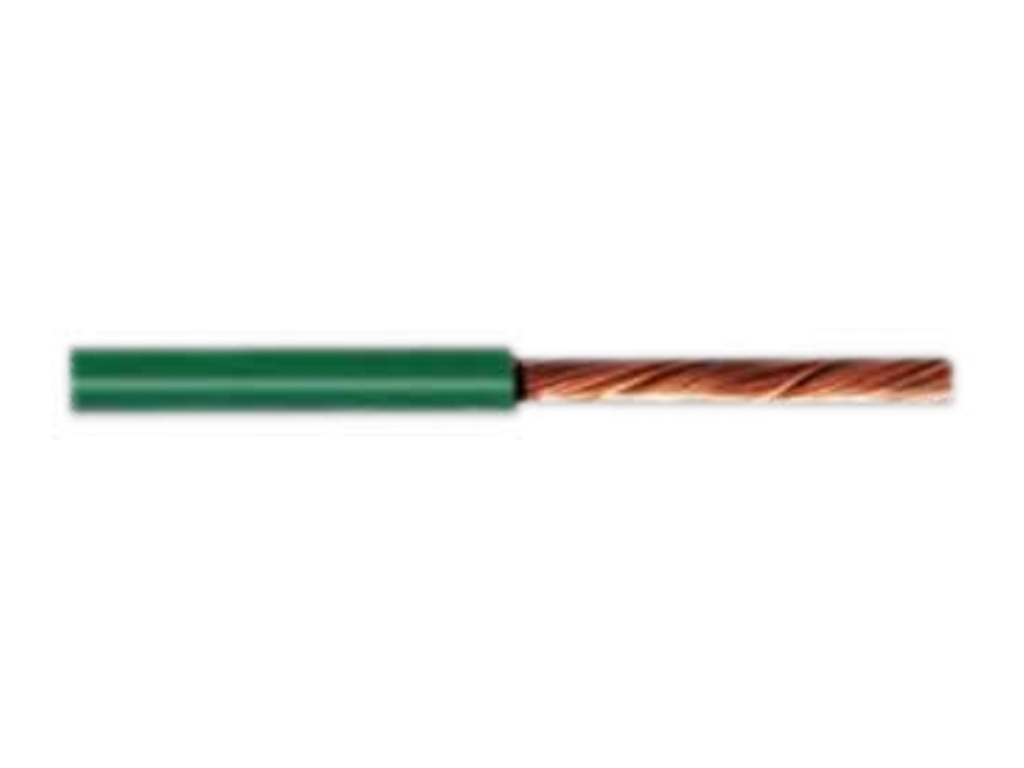

Cable single core 6mm
MM INDUSTRY EQUIVALENT NZ EQUIV STRAND NO/SIZE NOMINAL AREA (mm2) **AMP RATING@30°C INSULATION THICKNESS (mm) ELECTRICAL RESISTANCE @20°C (ohm/km) NOMINAL O.D. (mm) 6 156 57/0.32 4.59 48 0.6 4.1 5.3 Cable Single Core 6mm – Roll of 30 meter
Cable Single Core 5mm
MM INDUSTRY EQUIVALENT NZ EQUIV STRAND NO/SIZE NOMINAL AREA (mm2) **AMP RATING@30°C INSULATION THICKNESS (mm) ELECTRICAL RESISTANCE @20°C (ohm/km) NOMINAL O.D. (mm) 5 154 36/0.32 2.90 37 0.4 6.4 3.0 Cable Single Core 5mm – Roll of 30 meter
